Material: Material contact surface is 304L stainless steel, The outer body is Q235 Carbon steel structure steel. Configure total power:22KW, Actual use of power:10KW Energy saving: through raw materials themselves chemical reaction during process , rarely use the heater, reduced the production cost in a big degree compare with the traditional floral foam equipments . Environmental protection: use advanced "solid formaldehyde" synthetic resin technology, abandoned the boiler. realized no waste water, no waste gas. High efficiency: production process reduced 2-3hours than traditional process.

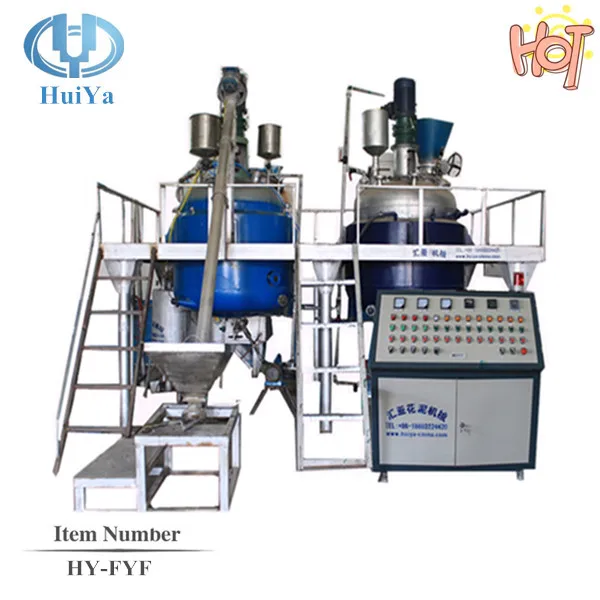

Two component floral foam foaming machine (Third generation)
Tank A material: Material contact surface use 304L stainless steel; The outer body use Q235 carbon steel, Tank B Material: 10mm thickness PP. This equipment have features of energy saving, high efficiency, environmental protection. PLC control, the data is accuracy, quality is stability also; Capacity of production: 15-20s/m, rotating speed: 2800r/min, The dispersion effect was increased by 30%; Equipment dimension: about (L) 5.8* (W)2.6* (H)3.5m; Configure total power: 26.8KW, the actual average operating power about 10KW; 6. Using the third generation of new pump instead of the screw pump, the pump body can running a long time and production out low heat , corrosion resistance, the output material is stable and accurate.
1. Using electric heating and automatic temperature control system, let the floral foam heated uniform and temperature consistent; 2. Floral foam forming regular shape, density uniform, almost no waste; 3. Equipment specification: it can be customized according to different floral foam size 4. Standard configuration of equipment list including 3 sets of mould 5. Configuration: manual fixed wheel, remote control track, circular track continuous operation and other forms can be choosed 6. Material: carbon steel Inside thickness:10mm outside thickness: 6mm
Vertical cutting machine
Description:1. remove the peel and cut the foam into different shapes. 2. The equipment dimension after installation: (L )3.6M*(W)2.8M*(H)2.4M 3. Rated total power: 1.5W
Simple operation. It is equipped with suction machine, which greatly reduces the floral foam powder pollution and makes working environment healthy.
CNC cutting machine
This equipment is CNC automatic operation, cooperate with vertical cutting machine staff, A woman can operate completely. if calcualted based on 8hours per workday, the machine can cut 2000-2200cartons foam with 8cm thickness.
Computer control, simple operation. Equipped with suction machine, greatly reduces the floral foam powder pollution, make working environment healthy.
PLC horizontal pushing machine
Cut dimension into 23cm, 11cm or you want the size. Print LOGO Equipment diemnsion after installation: (L )5.8M*(W)8.6M*(H)1.3M Rated power: 0.5W Production ability: can produce 1500ctns foam in 8hours.
This machine is used to cut the sloice in bricks, then the floral foam bricks go into PH processing system. The process is automatically controlled by PLC, which greatly improves the production efficiency and quality.

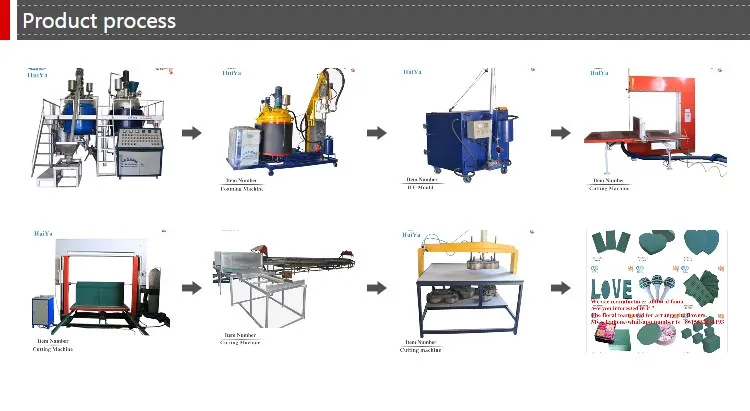

Product flow chart
1. All the production line covers 1000 square meters.
2. It needs 3~6 workers to work for 8 hours per day in order to produce 600~1500 cartons, which is enough for the standard configuration.
3. As for the power requirement, it needs about 100kw.
4. The machinery can be customized due to different countries have different requirements for the power.
5. As for the raw materials information, we will offer after signing of the contract.
6. As for the service, we will teach you until you learn it well in your country.
7. Besides, we will help you install the machines in your country.
8. If the equipment has any problems, we will help you to solve it.
